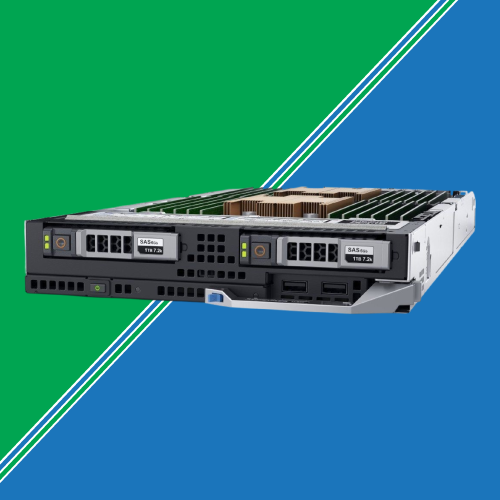

Dell PowerEdge FC630 Blade Server
Roll over image to zoom in
- Form Factor : Rack-mountable – 2U
- DIMM Slots : 24
- Max Supported Memory : Up to 1.5TB
- Intel Xeon processor E5-2600 v4
- Up to 1 Year Warranty
- Quick Shipping Across India
- 24/7 Technical Support Team
- Free Demo on Customer Demand
- Ideal for Small & Medium Businesses
Are you looking for FX converged architecture-based servers for your data center that allow access and use of multiple layers of centralized storage? The Dell PowerEdge FC630 blade server offers a scalable modular platform that is customizable to serve the specific multi-cloud workload and data center needs. The FC630 system, with a flexible FX converged framework, supports two powerful Intel Xeon CPUs from the E5-2600 v4 product family with 22 cores per processor and 1.5TB DDR4 RAM in 24 RDIMMs or LRDIMMs. With 8×1.8-inch SSD or 2×2.5-inch SATA or SAS HDD/SSD chassis options and pairing abilities with up to three FD332 storage modules, the FC630 server block can access up to 48 storage devices. Buy the Dell FC630 server for e-commerce, data analytics, virtualization, and mission-critical operations from Server Basket. We provide free, quick delivery anywhere in the UAE, an assured warranty, and 24/7 tech support.
Dell PowerEdge FC630 Blade Server for the FX2 Specs
| BRAND | Dell |
|---|---|
| SERVER MODEL | Dell EMC PowerEdge FC630 server |
| FORM FACTOR | Half-width – supports PowerEdge FX2 enclosure supports up to 4 x FC630 server nodes |
| PROCESSOR MODELS | Intel Xeon processor E5-2600 v4 product family |
| NO OF PROCESSORS | Up to 2 sockets |
| MAX CORES | per one core options 4, 6, 8, 10, 12, 16, 18, 22 |
| Chipset | Intel C610 series |
| RAM TYPE | DDR4 up to 2400MT/s |
| MAX MEMORY | Up to 1.5TB |
| TOTAL MEMORY SLOTS | 24 DIMM’s |
| SUPPORTED DRIVES | Hot-plug hard drive options include: PowerEdge Express Flash NVMe PCIe SSD SATA HDD/SSD SAS HDD/SSD You can choose up to 8 x 1.8"" SSDs or 2 x 2.5"" drives. |
| OPERATING SYSTEM | Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware ESX |
| PCIE SLOTS | Access to 2 x PCIe 3.0 (x8) expansion slots |
| POWER SUPPLY | Chassis Level – PowerEdge FX2 Hot-Plug Power Supply Units, 2000W, 1600W AC or 1100W AC in 1+1 redundant or 2+0 non-redundant configuration |
| RAID controller | Dell PowerEdge RAID Controller S130 (Software RAID), PERC H330, PERC H730, and PERC H730P |
Additional information
| Brand | Dell |
|---|---|
| Form Factor | Half-Height Blade Server – 4 Sleds per FX2. |
| Model | FC630 Server |
| Processor | Intel Xeon processor E5-2600 v4 |
| RAM Type | DDR4 |
| Primary storage | SATA HDD/SSD or SAS HDD/SSD |
| Power supplies | PowerEdge FX2 hot-plug PSU: 2000W, 1600W AC or 1100W AC in 1+1 redundant or 2+0 |
